BASIC PACKAGE : Rs 1750/* SQFT

Drawings

  • Schematic plan, Sanction plan

  • Working drawing

  • Structural design & Drawings

  • 2D elevation

Structure

  • RCC framed structure - 10 ft Floor to floor

  • Steel: India gold or Equivalent

  • Cement: Chettinadu or Equivalent

  • Masonry: 6 Inch & 4 inch solid concrete blocks

  • Sand: M sand for concrete, Blockwork & Plastering

  • RCC Design mix as per the structural design.

  • Waterproofing: cementitious waterproof

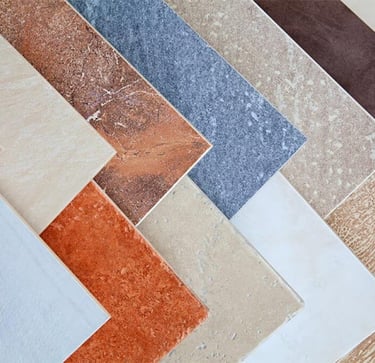

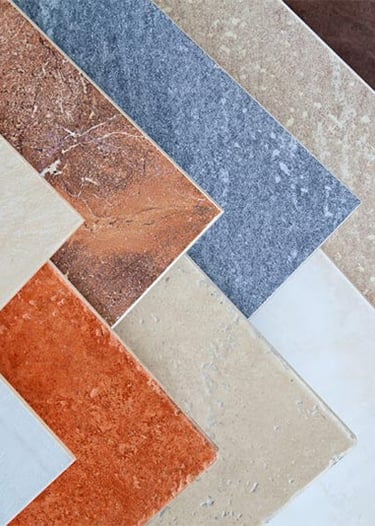

Flooring

  • Living. Kitchen, dining: Basic vitrified tile Rs. 40/- per Sft

  • Bedrooms: Basic vitrified tile Rs. 40/- per Sft

  • Balcony/Utility/Parking: Parking tile Rs. 30/- per Sft

  • Toilet: Basic ceramic tile Rs. 30/- per Sft

  • Staircase: Sadarahalli granite Rs. 40/- per sft

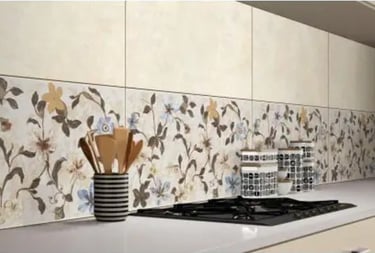

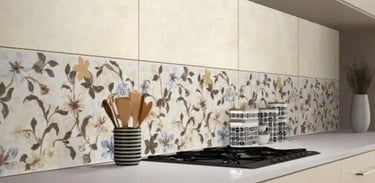

Dado

  • Kitchen wall upto 2ft height: Basic ceramic tile Rs. 30/- per Sft

  • Toilet wall upto 7ft height: Basic ceramic tile Rs. 30/- per Sft

Door frames

  • Main door - 3.5ftx7ft: Sal frame (4"x5")

  • Bedroom door - 3ftx7ft: Neem frame (4"x3")

  • Toilet door-2.5ftx7ft: Neem frame (4"x3")

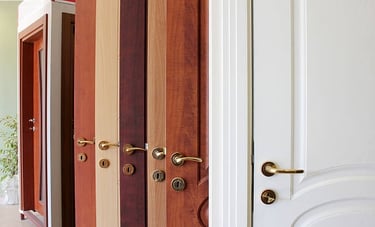

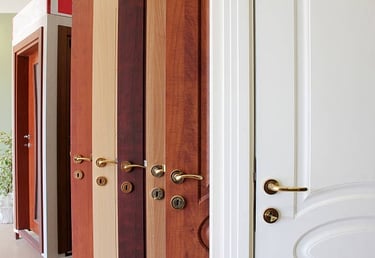

Door shutters

  • Main door: Ready made teak door Rs. 9000/- per number

  • Bedroom door: 30mm ply Flush door with enamel paint

  • Toilet door: 30mm ply Flush door with enamel paint

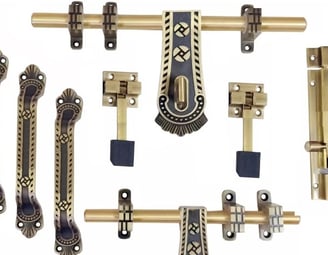

Door Hardwares

  • Main door: 8" Brass handle 2 nos (in & out), 2 nos tower bolt, Godrej

  • Magnet catch

  • Beroom door: Knob lock, 2 nos tower bolt, 3" SS hinges, Magnet cate

  • Toilet door: Knob lock, 2 nos tower bolt, 3" SS hinges

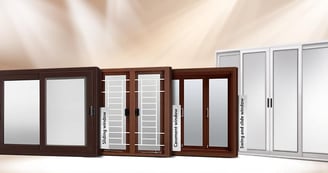

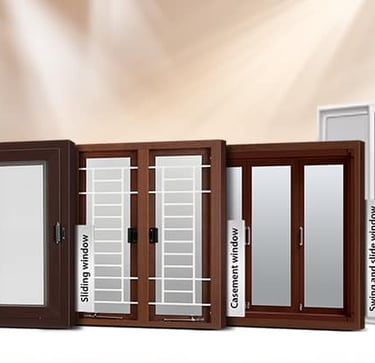

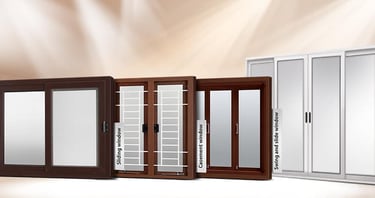

Windows

  • Living, Bed room & Kitchen: 2 track Jindal aluminum windows, 10m

  • standard design

  • Toilet: Jindal aluminum framewith Slant fixed glass louvers

Paint

  • External: Asian Ace paint

  • Internal: Distemper

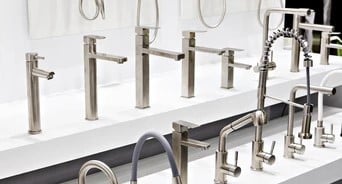

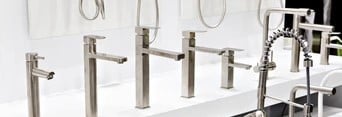

Bathroom fittings

  • Sanitary ware & CP Fittings up to Rs.30000 per 1000 square feet of construction

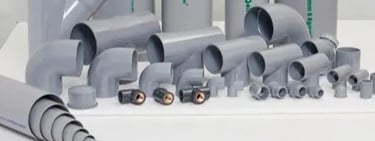

Plumbing pipes

  • Supreme/Equivalent pipes

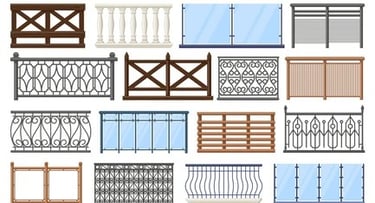

Railings

  • MS railing with Enamal paint

Window Grills

  • MS Grills with Enamel Paint at Rs130 per square feet

Electrical switch box

  • CONA/Equivalant

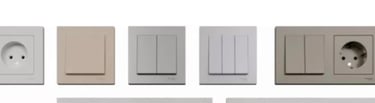

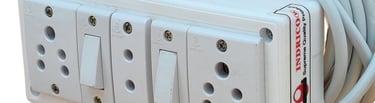

Electrical sockets and switches

  • CONA/Equivalent

Electrical

  • switch box CONA/Equivalent

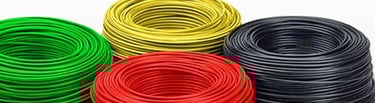

Electrical wires

  • Havells/Finolex/Equivalent
